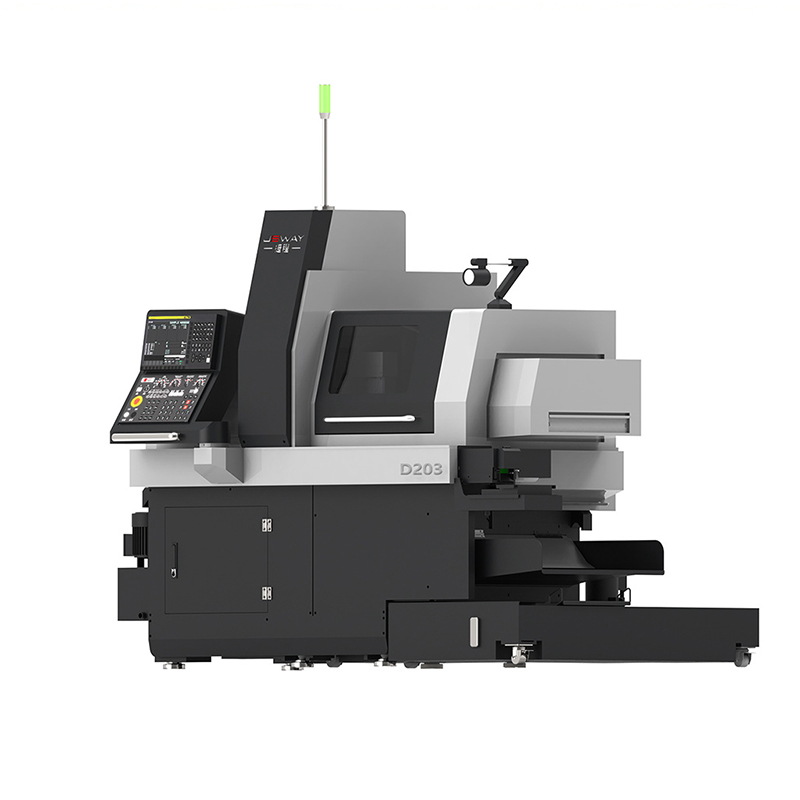

D203
JSWAY
3, XYZ
18 pieces
electric
Availability: | |
---|---|
1、System : Fanuc or Syntec 220TB
2、Spindle:JSWAY self-developed precision electric spindle
3、Japan NSK-P4 precision rod bearing
4、Taiwan HIWIN self-lubricating P2 precision guide rail
5、Taiwan HIWIN C3 precision thread rod
6、Main spindle:2.2KW (Fanuc)/ 5.5KW (Syntec)
7、Main spindle side S3 power tool ER16 x 4PCS with YASKWA servo motor 1KW
8、Main spindle end S5 fixed tool base ER16 x 6PCS
9、Main spindle end cuter base 12 x 12mm x 8PCS
10、Axial motor: Z-axis using Japan Yaskawa 850w servo motor; X-axis adopts with Japan Yaskawa 1000w servo motor; Y-axis adopts with Japan Yaskawa 1300w servo motor (with brake).
11、Taiwan AIRTAC pneumatic components
12、JSWAY customization automatic lubricant pump diver
13、JSWAY customization high pressure station.
1、System : Fanuc or Syntec 220TB
2、Spindle:JSWAY self-developed precision electric spindle
3、Japan NSK-P4 precision rod bearing
4、Taiwan HIWIN self-lubricating P2 precision guide rail
5、Taiwan HIWIN C3 precision thread rod
6、Main spindle:2.2KW (Fanuc)/ 5.5KW (Syntec)
7、Main spindle side S3 power tool ER16 x 4PCS with YASKWA servo motor 1KW
8、Main spindle end S5 fixed tool base ER16 x 6PCS
9、Main spindle end cuter base 12 x 12mm x 8PCS
10、Axial motor: Z-axis using Japan Yaskawa 850w servo motor; X-axis adopts with Japan Yaskawa 1000w servo motor; Y-axis adopts with Japan Yaskawa 1300w servo motor (with brake).
11、Taiwan AIRTAC pneumatic components
12、JSWAY customization automatic lubricant pump diver
13、JSWAY customization high pressure station.
Model No. | D203 | |
Structural type | Gantry type | |
Operating System | FANUC or SYNTEC | |
AXES | XYZ | |
Rapid traverse rate (M/min) | 24 | |
Processing ability | The diameter of the bar held by the spindle (MM) | 3-20 |
Maximum drilling diameter of spindle (MM) | 10 | |
Maximum tapping diameter of spindle (M) | M8 | |
The diameter of the bar held by the sub-spindle (MM) | N | |
Maximum drilling diameter of sub-spindle (MM) | N | |
Maximum tapping diameter of sub-spindle (M) | N | |
Maximum drilling diameter of side milling power head (MM) | 10 | |
Maximum tapping diameter of side milling power head (M) | M8 | |
Spindle | Spindle power (KW) | FANUC 3.7 SYNTEC 7.5 |
Maximum spindle speed (RMP) | 10000 | |
Spindle table | Spindle linkage movable guide bush stroke (MM) | 125 |
Max movement | Without guide bush (optional, MM) | 290 |
Tools | Quantity of turning tools (pieces) | 12x12MM, 8 pieces |
Side power tool (pieces) | ER16, 4 pieces | |
Spindle end face tool (pieces) | fixed tool ER16, 6 pieces | |
Sub-spindle end face tool (pieces) | N | |
Sub-spindle side tool | N | |
Total quantity of tools | 10 | |
Maximum speed of power head (RPM) | 5500 | |
Others | Size (LWH, approximate, MM) | 1500x1000x1700 |
Weight (approximate, KG) | 1300 | |
Optional configuration | Thermal compensation function | N |
Automatic chip breaking function | N |
Model No. | D203 | |
Structural type | Gantry type | |
Operating System | FANUC or SYNTEC | |
AXES | XYZ | |
Rapid traverse rate (M/min) | 24 | |
Processing ability | The diameter of the bar held by the spindle (MM) | 3-20 |
Maximum drilling diameter of spindle (MM) | 10 | |
Maximum tapping diameter of spindle (M) | M8 | |
The diameter of the bar held by the sub-spindle (MM) | N | |
Maximum drilling diameter of sub-spindle (MM) | N | |
Maximum tapping diameter of sub-spindle (M) | N | |
Maximum drilling diameter of side milling power head (MM) | 10 | |
Maximum tapping diameter of side milling power head (M) | M8 | |
Spindle | Spindle power (KW) | FANUC 3.7 SYNTEC 7.5 |
Maximum spindle speed (RMP) | 10000 | |
Spindle table | Spindle linkage movable guide bush stroke (MM) | 125 |
Max movement | Without guide bush (optional, MM) | 290 |
Tools | Quantity of turning tools (pieces) | 12x12MM, 8 pieces |
Side power tool (pieces) | ER16, 4 pieces | |
Spindle end face tool (pieces) | fixed tool ER16, 6 pieces | |
Sub-spindle end face tool (pieces) | N | |
Sub-spindle side tool | N | |
Total quantity of tools | 10 | |
Maximum speed of power head (RPM) | 5500 | |
Others | Size (LWH, approximate, MM) | 1500x1000x1700 |
Weight (approximate, KG) | 1300 | |
Optional configuration | Thermal compensation function | N |
Automatic chip breaking function | N |
Tool layout :
Machine dimension (with feeder for reference)
Tool layout :
Machine dimension (with feeder for reference)
