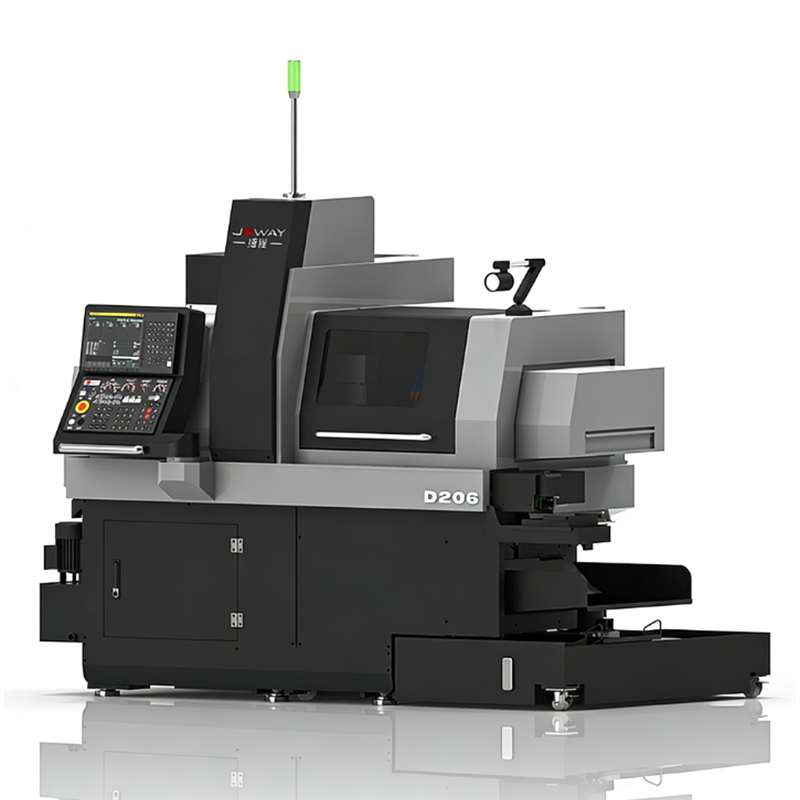

D206D 6 Axis Electric Spindle Power Tools CNC Swiss Lathe Dual processing channel Fast spindle Guide rail FANUC

Advantage and Features
  1.  6 axis.
  2.  Eletric spindle.
  3.  Processing diameter 3-20 MM, max travel 290MM.
  4.  Almost any complicated metal work piece could be done in one go.
  5. JSWAY independently developed high-power synchronous motorized spindle, 3.7KW/7.5KW, fast takeoff and landing speed response, high efficiency, excellent performance.
  6. JSWAY independently developed power head, low noise, strong rigidity, high precision, representing the industry's high level.
  7. Smooth appearance, precision workmanship, rigorous structure, high-end brand image in the industry
  8. Dual channel operation, main spindle, sub spindle can be independently processed at the same time, shorten the total processing time.
  9. 6 axes powerful function, ultra-efficient processing mode.
  10. X\Y\Z axial motor high power 850W/750W medium inertia servo motor.
  11. The thread rob nut is double nut, strong rigid cutting; Bearings fixed mode, maintain high precision.
  12.  The thread rob rail 25mm large lead pitch 10mm , fast moving speed working slider table 30m/min.
  13. Three direction with power head S3, S4, S5 easy application; Equipped with standard high pressure, 30~50kg optional.
  14. The machine bed, motor frame, bearing seat, sub spindle drag plate are all connected structure, to ensure tight mechanical structure, beautiful shape.
  15. With thermal deviation precision compensation function.
  • D206D

  • JSWAY

  • 6, X1Y1Z1 + X2Y2Z2

  • 29 pieces

  • electric

Availability:

1. System: FANUC Oi-TF Plus.

2. Spindle: JSWAY customization precision electric spindle.

3. Japan NSK-P4 precision screw rod bearing.

4. Taiwan HIWIN self-lubricating P2 precision guide rail.

5. Taiwan HIWIN C3 precision thread rod.

6. Main and Sub spindle:FANUC 3.7KW electric spindle motor.

7. Main spindle side power head S3 (power tool ER16 x 4PCS) with FANUC servo motor 1.0 KW.

8.  Main spindle end S5 fixed tool base ER16 x 4PCS +power tool ER16 x 2PCS with  FANUC servo motor 750W.

9.  Main spindle end tool base 12x12mm x 8PCS.

10. Sub main spindle end S4 fixed tool base ¢22 x 5PCS + power tool ER16 x 4PCS with FANUC servo motor 1.0 KW.

11. Sub main spindle side power head ER16 x 2PCS with FANUC servo motor 1.0 KW.

12. Taiwan AIRTAC pneumatic components.

13. JSWAY customization automatic lubricant pump diver.



Item

D206D

System

FANUC

Oi-TF Plus

Processing     capacity

Max. machining diameter

Φ20mm

Max.one-time machining length

Max. material triple diameter (without guild bush) /

125mm(with guild bush)

Main spindle max. drilling diameter

Φ10mm

Main spindle max tapping diameter

M8

Main spindle through hole diameter

23mm

Main spindle max. turning speed

10000r/min

Side max. drilling diameter

Φ10mm

Side max. Tapping diameter

M6

Side milling max. speed

5500r/min

Sub spindle max. hold bar diameter

Φ20mm

Sub spindle max. extension length

120mm

Sub spindle max. drilling diameter

Φ10mm

Sub spindle max. tapping diameter

M8

Sub spindle max. turning speed

10000r/min

Sub spindle max. drilling diameter

Φ10mm








Tool base and motor power

Main spindle end cutter

8PCS 12x12mm cutter base

Main spindle side tool

4PCS ER16 power head

Main spindle end tool

4PCS ER16 fixed tool base+2PCS ER16 power head

Sub spindle end tool

5PCS ER16 fixed tool base+4PCS ER16 power head

Sub spindle side tool

2PCS ER16 power head

Moving speed

30m/min(Y1/Z1/X2/Z2/Y2) 20m/min(X1)

Feed accuracy

0.001

Electric main spindle power

3700W

Electric sub spindle power

3700W

Side milling motor power

750W

End milling motor power

750W

Sub spindle end motor power

1000W

Sub spindle side motor power

1000W




Feed motor power

Z1-axis feeds servo motor power

1200W

X1-axis feeds servo motor power

750W

Y1-axis feeds servo motor power

1200W(brake)

Z2-axis feeds servo motor power

750W

X2-axis feeds servo motor power

750W

Y2-axis feeds servo motor power

750W (brake)


Machine

Dimension

Around L2300xW1250xH1750mm

Total weight

Around 2600KG


1.Tool arrangement layout

Main spindle:


Sub spindle:


2. Machine dimension(with feeder for reference)
