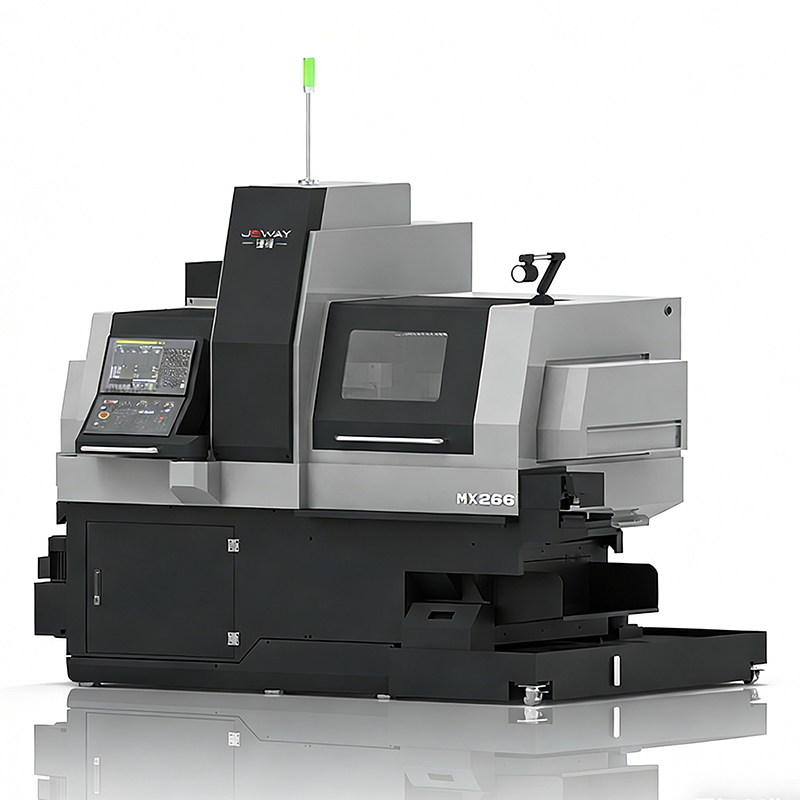

MX266
JSWAY
6, X1Y1Z1 + X2Y2Z2
35 pieces
electric
Availability: | |
---|---|
1. System: SYNTEC 220TB.
2. Spindle: JSWAY self-developed precision spindle.
3. Japan NSK-P4 precision rod bearing.
4. Taiwan HIWIN self-lubricating P2 precision guide rail.
5. Taiwan HIWIN C3 precision thread rod.
6. Main and Sub spindle:8200W electric spindle motor.
7. Main spindle side S3 power tool ER16 x 3PCS + ER16 x 2PCS with YASKAWA servo motor 1000W.
8. Main spindle end S5 with B-axis function, fixed tool base ER16 x 4PCS+power head ER16 x 4PCS with YASKAWA servo motor 1000W.
9. Main spindle cuter base 16 x 16mm x 7CS.
10. Sub spindle end S4 fixed tool base ER16 x 8PCS+power head ER16 x 4PCS with YASKAWA servo motor 1000W.
11. Sub spindle side S4 power head ER16 x 3PCS with YASKAWA servo motor 1000W.
12. Taiwan AIRTAC pneumatic components.
13. JSWAY customization automatic lubricant pump diver.
14. JSWAY customization high pressure station.
1. System: SYNTEC 220TB.
2. Spindle: JSWAY self-developed precision spindle.
3. Japan NSK-P4 precision rod bearing.
4. Taiwan HIWIN self-lubricating P2 precision guide rail.
5. Taiwan HIWIN C3 precision thread rod.
6. Main and Sub spindle:8200W electric spindle motor.
7. Main spindle side S3 power tool ER16 x 3PCS + ER16 x 2PCS with YASKAWA servo motor 1000W.
8. Main spindle end S5 with B-axis function, fixed tool base ER16 x 4PCS+power head ER16 x 4PCS with YASKAWA servo motor 1000W.
9. Main spindle cuter base 16 x 16mm x 7CS.
10. Sub spindle end S4 fixed tool base ER16 x 8PCS+power head ER16 x 4PCS with YASKAWA servo motor 1000W.
11. Sub spindle side S4 power head ER16 x 3PCS with YASKAWA servo motor 1000W.
12. Taiwan AIRTAC pneumatic components.
13. JSWAY customization automatic lubricant pump diver.
14. JSWAY customization high pressure station.
Item | MX266 | |
System | SYNTEC | 220TB |
Moving speed | 30m/min (X-axis ) | |
Processing capacity | Main spindle hold bar diameter | Ø5mm-Ø26mm |
Main spindle max. drilling diameter | Ø10mm | |
Main spindle max tapping diameter | M8 | |
Sub spindle hold bar diameter | Ø5mm-Ø26mm | |
Sub spindle max. drilling diameter | Ø8mm | |
Sub spindle max. tapping diameter | M6 | |
Side power milling max. drilling diameter | Ø10mm | |
Side power milling max. tapping diameter | M8 | |
Electric spindle | Main spindle power | 8200W |
Main spindle max. turning speed | 8000r/min | |
Sub spindle power | 8200W | |
Sub spindle max. turning speed | 8000r/min | |
Spindle max. travel | Movable guide bush travel (spline type) | 220mm |
No guide bush travel (optional) | 360mm | |
Tool | Main spindle cutter | 7PCS 16x16mm cutter base |
Main spindle side tool | 3PCS ER16 +2PCS ER20 power tool | |
Main spindle side power head max. turning speed | 5500r/min | |
Main spindle side power head motor power | YASKAWA 1000W | |
Main spindle end tool | 4PCS fixed tool base + 4PCS power tool ER16 | |
Main spindle end power head max. turning speed | 5500r/min | |
Main spindle end power head motor power | YASKAWA 1000W | |
Sub spindle end tool | 8PCS fixed tool base + 4PCS power tool ER16 | |
Sub spindle end power head max. turning speed | 5500r/min | |
Sub spindle end power head motor power | YASKAWA 1000W | |
Sub spindle side tool | 3PCS power tool ER16 | |
Sub spindle side power head max. turning speed | 5500r/min | |
Sub spindle side power head motor power | YASKAWA 1000W | |
Feed motor power | Z1-axis feeds servo motor power | YASKAWA 850W |
X1-axis feeds servo motor power | YASKAWA 850W | |
Y1-axis feeds servo motor power | YASKAWA 1300W(brake) | |
Z2-axis feeds servo motor power | YASKAWA 850W | |
X2-axis feeds servo motor power | YASKAWA 850W | |
Y2-axis feeds servo motor power | YASKAWA 850W(brake) | |
Machine | Dimension | Around L2472xW1930xH2501mm |
Total weight | Around 3500KG |
Item | MX266 | |
System | SYNTEC | 220TB |
Moving speed | 30m/min (X-axis ) | |
Processing capacity | Main spindle hold bar diameter | Ø5mm-Ø26mm |
Main spindle max. drilling diameter | Ø10mm | |
Main spindle max tapping diameter | M8 | |
Sub spindle hold bar diameter | Ø5mm-Ø26mm | |
Sub spindle max. drilling diameter | Ø8mm | |
Sub spindle max. tapping diameter | M6 | |
Side power milling max. drilling diameter | Ø10mm | |
Side power milling max. tapping diameter | M8 | |
Electric spindle | Main spindle power | 8200W |
Main spindle max. turning speed | 8000r/min | |
Sub spindle power | 8200W | |
Sub spindle max. turning speed | 8000r/min | |
Spindle max. travel | Movable guide bush travel (spline type) | 220mm |
No guide bush travel (optional) | 360mm | |
Tool | Main spindle cutter | 7PCS 16x16mm cutter base |
Main spindle side tool | 3PCS ER16 +2PCS ER20 power tool | |
Main spindle side power head max. turning speed | 5500r/min | |
Main spindle side power head motor power | YASKAWA 1000W | |
Main spindle end tool | 4PCS fixed tool base + 4PCS power tool ER16 | |
Main spindle end power head max. turning speed | 5500r/min | |
Main spindle end power head motor power | YASKAWA 1000W | |
Sub spindle end tool | 8PCS fixed tool base + 4PCS power tool ER16 | |
Sub spindle end power head max. turning speed | 5500r/min | |
Sub spindle end power head motor power | YASKAWA 1000W | |
Sub spindle side tool | 3PCS power tool ER16 | |
Sub spindle side power head max. turning speed | 5500r/min | |
Sub spindle side power head motor power | YASKAWA 1000W | |
Feed motor power | Z1-axis feeds servo motor power | YASKAWA 850W |
X1-axis feeds servo motor power | YASKAWA 850W | |
Y1-axis feeds servo motor power | YASKAWA 1300W(brake) | |
Z2-axis feeds servo motor power | YASKAWA 850W | |
X2-axis feeds servo motor power | YASKAWA 850W | |
Y2-axis feeds servo motor power | YASKAWA 850W(brake) | |
Machine | Dimension | Around L2472xW1930xH2501mm |
Total weight | Around 3500KG |
