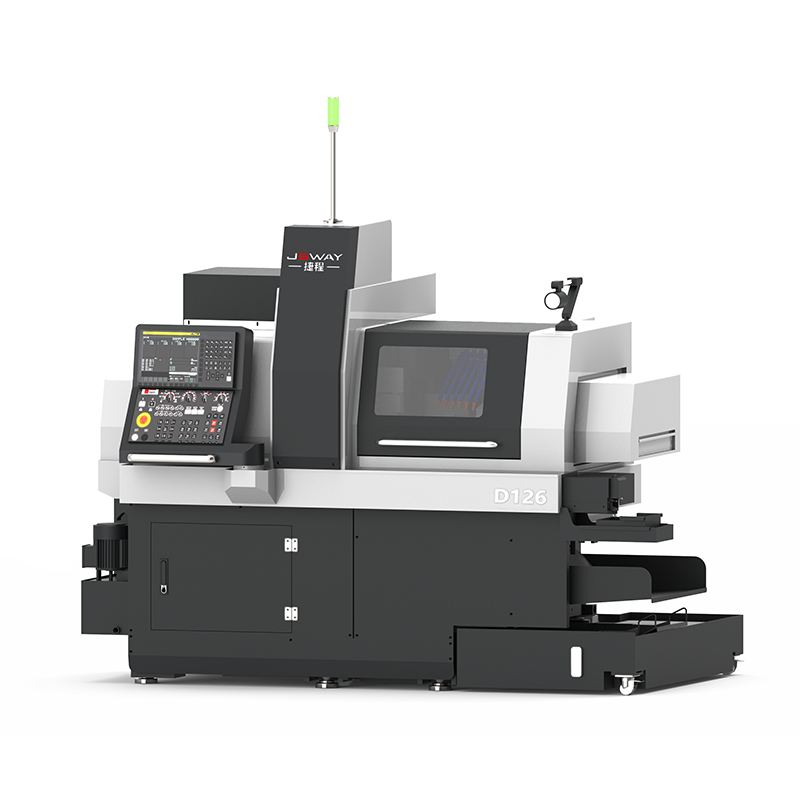

D126D
JSWAY
6, X1Y1Z1 + X2Y2Z2
29 pieces
electric
Availability: | |
---|---|
1. System : FANUC Oi-TF Plus.
2. Spindle:JSWAY self-developed precision electric spindle.
3. Japan NSK-P4 precision rod bearing.
4. Taiwan HIWIN self-lubricating P2 precision guide rail.
5. Taiwan HIWIN C3 precision thread rod.
6. Main and Sub spindle:FANUC 2.2KW electric spindle motor.
7. Main spindle side S3 power tool ER16 x 4PCS with FANUC servo motor 1000W.
8. Main spindle end S5 fixed tool base ER16 x 4PCS+power head ER16 x 2PCS with FANUC servo motor 750W.
9. Main spindle cuter base 12 x 12mm x 8PCS.
10. Sub spindle end S4 fixed tool base ER16 x 5PCS+power head ER16 x 4PCS with FANUC servo motor 1000W.
11. Sub spindle side S4 power head ER16 x 2PCS with FANUC servo motor 1000W.
12. Taiwan AIRTAC pneumatic components.
13. JSWAY customization automatic lubricant pump diver.
14. JSWAY customization high pressure station.
1. System : FANUC Oi-TF Plus.
2. Spindle:JSWAY self-developed precision electric spindle.
3. Japan NSK-P4 precision rod bearing.
4. Taiwan HIWIN self-lubricating P2 precision guide rail.
5. Taiwan HIWIN C3 precision thread rod.
6. Main and Sub spindle:FANUC 2.2KW electric spindle motor.
7. Main spindle side S3 power tool ER16 x 4PCS with FANUC servo motor 1000W.
8. Main spindle end S5 fixed tool base ER16 x 4PCS+power head ER16 x 2PCS with FANUC servo motor 750W.
9. Main spindle cuter base 12 x 12mm x 8PCS.
10. Sub spindle end S4 fixed tool base ER16 x 5PCS+power head ER16 x 4PCS with FANUC servo motor 1000W.
11. Sub spindle side S4 power head ER16 x 2PCS with FANUC servo motor 1000W.
12. Taiwan AIRTAC pneumatic components.
13. JSWAY customization automatic lubricant pump diver.
14. JSWAY customization high pressure station.
Item | D126D | |
System | FANUC | Oi-TF Plus |
Processing capacity | Max. machining diameter | Ø2mm-Ø12mm |
Max.one-time machining length | Max. material triple diameter (without guide bush) /125mm(with guide bush) | |
Main spindle max. drilling diameter | Ø10mm | |
Main spindle max tapping diameter | M8 | |
Main spindle through hole diameter | Ø19mm | |
Main spindle max. turning speed | 10000r/min | |
Side max. drilling diameter | Ø10mm | |
Side max. tapping diameter | M8 | |
Side milling max. speed | 5500r/min | |
Sub spindle max. hold bar diameter | Ø12mm | |
Sub spindle max. extension length | 120mm | |
Sub spindle max. drilling diameter | Ø10mm | |
Sub spindle max. tapping diameter | M8 | |
Sub spindle max. turning speed | 10000r/min | |
Sub spindle tool max. drilling diameter | Ø8mm | |
Tool base and motor power | Main spindle cutter | 8PCS 12x12mm cutter base |
Main spindle side tool | 4PCS ER16 power tool | |
Main spindle end tool | 4PCS ER16 fixed tool base+2PCS ER16 power tool | |
Sub spindle end tool | 5PCS ER16 fixed tool base+4PCS ER16 power tool | |
Sub spindle side tool | 2PCS ER16 power tool | |
Moving speed | 30m/min(Y1/Z1/X2/Z2/Y2) 20m/min(X1) | |
Feed accuracy | 0.001 | |
Main spindle motor power | 2200W | |
Sub spindle motor power | 2200W | |
Main side motor power | 1000W | |
Main spindle end motor power | 750W | |
Sub spindle end motor power | 1000W | |
Sub spindle side motor power | 1000W | |
Feed motor power | Z1-axis feeds servo motor power | 1200W |
X1-axis feeds servo motor power | 750W | |
Y1-axis feeds servo motor power | 1200W(brake) | |
Z2-axis feeds servo motor power | 750W | |
X2-axis feeds servo motor power | 750W | |
Y2-axis feeds servo motor power | 750W(brake) | |
Machine | Dimension | Around L2300xW1250xH1750mm |
Total weight | Around 2600KG |
Item | D126D | |
System | FANUC | Oi-TF Plus |
Processing capacity | Max. machining diameter | Ø2mm-Ø12mm |
Max.one-time machining length | Max. material triple diameter (without guide bush) /125mm(with guide bush) | |
Main spindle max. drilling diameter | Ø10mm | |
Main spindle max tapping diameter | M8 | |
Main spindle through hole diameter | Ø19mm | |
Main spindle max. turning speed | 10000r/min | |
Side max. drilling diameter | Ø10mm | |
Side max. tapping diameter | M8 | |
Side milling max. speed | 5500r/min | |
Sub spindle max. hold bar diameter | Ø12mm | |
Sub spindle max. extension length | 120mm | |
Sub spindle max. drilling diameter | Ø10mm | |
Sub spindle max. tapping diameter | M8 | |
Sub spindle max. turning speed | 10000r/min | |
Sub spindle tool max. drilling diameter | Ø8mm | |
Tool base and motor power | Main spindle cutter | 8PCS 12x12mm cutter base |
Main spindle side tool | 4PCS ER16 power tool | |
Main spindle end tool | 4PCS ER16 fixed tool base+2PCS ER16 power tool | |
Sub spindle end tool | 5PCS ER16 fixed tool base+4PCS ER16 power tool | |
Sub spindle side tool | 2PCS ER16 power tool | |
Moving speed | 30m/min(Y1/Z1/X2/Z2/Y2) 20m/min(X1) | |
Feed accuracy | 0.001 | |
Main spindle motor power | 2200W | |
Sub spindle motor power | 2200W | |
Main side motor power | 1000W | |
Main spindle end motor power | 750W | |
Sub spindle end motor power | 1000W | |
Sub spindle side motor power | 1000W | |
Feed motor power | Z1-axis feeds servo motor power | 1200W |
X1-axis feeds servo motor power | 750W | |
Y1-axis feeds servo motor power | 1200W(brake) | |
Z2-axis feeds servo motor power | 750W | |
X2-axis feeds servo motor power | 750W | |
Y2-axis feeds servo motor power | 750W(brake) | |
Machine | Dimension | Around L2300xW1250xH1750mm |
Total weight | Around 2600KG |
Tool layout :
Main spindle tool
Sub spindle tool
Machine dimension
Tool layout :
Main spindle tool
Sub spindle tool
Machine dimension
The D126D is equipped with the renowned Fanuc system, ensuring reliable and efficient operation. With its world-famous brands' quality, this machine delivers exceptional accuracy, consistency, and durability. Rest assured, every component is built to withstand the rigors of heavy-duty machining while maintaining the highest level of precision.
One of the key advantages of the D126D is its affordability without compromising on quality. Designed to cater to businesses of all sizes, this lathe offers excellent value for money. You don't have to break the bank to acquire a high-performance Swiss lathe that meets your production needs.
Featuring an impressive 6-axis system, the D126D offers unprecedented versatility and flexibility. This multi-function machine is capable of handling almost any complicated or complex metal workpiece. Whether it's intricate threading, precise turning, or complex milling, this lathe is designed to tackle a wide range of metalworking tasks with ease.
With the D126D, you can achieve exceptional precision and accuracy, ensuring consistent and high-quality finished products. This machine opens up endless possibilities for customization and intricate detailing, allowing you to deliver exceptional results that meet the most demanding specifications.
The D126D Swiss lathe is designed with efficiency and convenience in mind. Its intuitive interface and user-friendly controls make programming and operation a breeze, even for operators with limited experience. Minimize downtime and maximize productivity with this easy-to-use machine.
The D126D is equipped with the renowned Fanuc system, ensuring reliable and efficient operation. With its world-famous brands' quality, this machine delivers exceptional accuracy, consistency, and durability. Rest assured, every component is built to withstand the rigors of heavy-duty machining while maintaining the highest level of precision.
One of the key advantages of the D126D is its affordability without compromising on quality. Designed to cater to businesses of all sizes, this lathe offers excellent value for money. You don't have to break the bank to acquire a high-performance Swiss lathe that meets your production needs.
Featuring an impressive 6-axis system, the D126D offers unprecedented versatility and flexibility. This multi-function machine is capable of handling almost any complicated or complex metal workpiece. Whether it's intricate threading, precise turning, or complex milling, this lathe is designed to tackle a wide range of metalworking tasks with ease.
With the D126D, you can achieve exceptional precision and accuracy, ensuring consistent and high-quality finished products. This machine opens up endless possibilities for customization and intricate detailing, allowing you to deliver exceptional results that meet the most demanding specifications.
The D126D Swiss lathe is designed with efficiency and convenience in mind. Its intuitive interface and user-friendly controls make programming and operation a breeze, even for operators with limited experience. Minimize downtime and maximize productivity with this easy-to-use machine.
