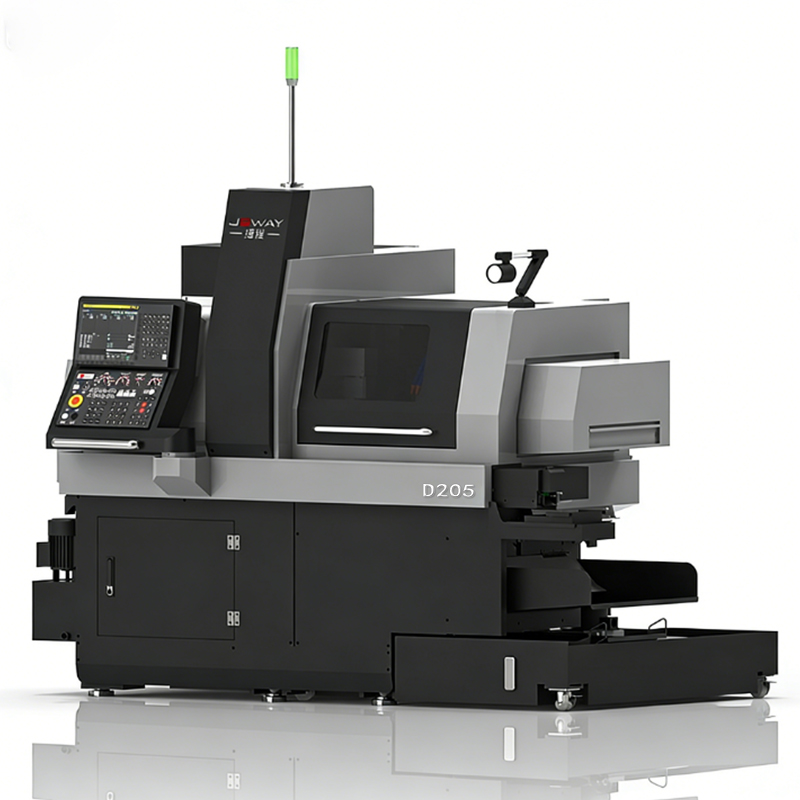

D205D
JSWAY
5, X1Y1Z1 + X2Z2
24 pieces
electric
Availability: | |
---|---|
1. CNC system : FANUC Oi-TF Plus.
2. Spindle:JSWAY self-developed precision electric spindle.
3. Japan NSK-P4 precision rod bearing.
4. Taiwan HIWIN self-lubricating P2 precision guide rail.
5. Taiwan HIWIN C3 precision thread rod.
6. Main and Sub spindle:3.7KW electric spindle motor.
7. Main spindle side power head motor S3 (power tool ER16 x 4PCS) with FANUC servo motor 750W.
8. Main spindle end S5 fixed tool ER16 x 4PCS+power tool ER16 x 2PCS with FANUC servo motor 1000W.
9. Main spindle end cuter base 12x 12mm x 8PCS.
10. Sub spindle end S4 fixed tool ER16 x 3PCS+power tool ER16 x 3PCS with FANUC servo motor 1000W.
11. Taiwan AIRTAC pneumatic components.
12. BAOTN automatic lubricant pump diver.
13. JSWAY customization high pressure station.
1. CNC system : FANUC Oi-TF Plus.
2. Spindle:JSWAY self-developed precision electric spindle.
3. Japan NSK-P4 precision rod bearing.
4. Taiwan HIWIN self-lubricating P2 precision guide rail.
5. Taiwan HIWIN C3 precision thread rod.
6. Main and Sub spindle:3.7KW electric spindle motor.
7. Main spindle side power head motor S3 (power tool ER16 x 4PCS) with FANUC servo motor 750W.
8. Main spindle end S5 fixed tool ER16 x 4PCS+power tool ER16 x 2PCS with FANUC servo motor 1000W.
9. Main spindle end cuter base 12x 12mm x 8PCS.
10. Sub spindle end S4 fixed tool ER16 x 3PCS+power tool ER16 x 3PCS with FANUC servo motor 1000W.
11. Taiwan AIRTAC pneumatic components.
12. BAOTN automatic lubricant pump diver.
13. JSWAY customization high pressure station.
Item | D205D | |
System | FANUC | Oi-TF Plus |
Processing capacity | Max. machining diameter | Φ20mm |
Max.one-time machining length | Max. material triple diameter (without guide bush) /125mm(with guide bush) | |
Main spindle max. drilling diameter | Φ10mm | |
Main spindle max. tapping diameter | M8 | |
Main spindle through hole diameter | 23mm | |
Main spindle max. turning speed | 10000r/min | |
Side max. drilling diameter | Φ10mm | |
Side max. tapping diameter | M6 | |
Side milling max. speed | 5500r/min | |
Sub spindle max. hold bar diameter | Φ20mm | |
Sub spindle max. extension length | 120mm | |
Sub spindle max. drilling diameter | Φ10mm | |
Sub spindle max. tapping diameter | M8 | |
Sub spindle max. turning speed | 10000r/min | |
Sub spindle tool max. drilling diameter | Φ10mm | |
Tool base and motor power | Main spindle cutter | 8PCS 12x12mm cutter base |
Main spindle side tool | 4PCS ER16 power tool | |
Main spindle end tool | 4PCS ER16 fixed tool base+2PCS ER16 power tool | |
Sub spindle end tool | 3PCS ER16 fixed tool base+3PCS ER16 power tool | |
Moving speed | 30m/min(Y1/Z1/X2/Z2) 20m/min(X1) | |
Feed accuracy | 0.001 | |
Main electric spindle power | 3700W | |
Sub electric spindle power | 3700W | |
Side milling motor power | 1000W | |
End motor power | 750W | |
Sub spindle end motor power | 1000W | |
Feed motor power | Z1-axis feeds servo motor power | 1200W |
X1-axis feeds servo motor power | 750W | |
Y1-axis feeds servo motor power | 1200W(brake) | |
Z2-axis feeds servo motor power | 750W | |
X2-axis feeds servo motor power | 750W | |
Machine
| Dimension | Around L2300xX1250xH1750mm |
Total weight | Around 2550KG |
Item | D205D | |
System | FANUC | Oi-TF Plus |
Processing capacity | Max. machining diameter | Φ20mm |
Max.one-time machining length | Max. material triple diameter (without guide bush) /125mm(with guide bush) | |
Main spindle max. drilling diameter | Φ10mm | |
Main spindle max. tapping diameter | M8 | |
Main spindle through hole diameter | 23mm | |
Main spindle max. turning speed | 10000r/min | |
Side max. drilling diameter | Φ10mm | |
Side max. tapping diameter | M6 | |
Side milling max. speed | 5500r/min | |
Sub spindle max. hold bar diameter | Φ20mm | |
Sub spindle max. extension length | 120mm | |
Sub spindle max. drilling diameter | Φ10mm | |
Sub spindle max. tapping diameter | M8 | |
Sub spindle max. turning speed | 10000r/min | |
Sub spindle tool max. drilling diameter | Φ10mm | |
Tool base and motor power | Main spindle cutter | 8PCS 12x12mm cutter base |
Main spindle side tool | 4PCS ER16 power tool | |
Main spindle end tool | 4PCS ER16 fixed tool base+2PCS ER16 power tool | |
Sub spindle end tool | 3PCS ER16 fixed tool base+3PCS ER16 power tool | |
Moving speed | 30m/min(Y1/Z1/X2/Z2) 20m/min(X1) | |
Feed accuracy | 0.001 | |
Main electric spindle power | 3700W | |
Sub electric spindle power | 3700W | |
Side milling motor power | 1000W | |
End motor power | 750W | |
Sub spindle end motor power | 1000W | |
Feed motor power | Z1-axis feeds servo motor power | 1200W |
X1-axis feeds servo motor power | 750W | |
Y1-axis feeds servo motor power | 1200W(brake) | |
Z2-axis feeds servo motor power | 750W | |
X2-axis feeds servo motor power | 750W | |
Machine
| Dimension | Around L2300xX1250xH1750mm |
Total weight | Around 2550KG |
Tool layout :
Main spindle tool
Sub spindle tool
2. Machine dimension (with feeder for reference)
Tool layout :
Main spindle tool
Sub spindle tool
2. Machine dimension (with feeder for reference)
